XSZ SINGLE ZOOM TUBE

The XSZ zoom tube is a versatile accessory that is primarily designed for use with a CCD camera. It allows the user to "transfer" images onto a monitor for greater emphasis and detail, while allowing others to view the images, with its wide working distance capability. This high-resolution system accommodates nearly all-specific requirements for magnification and field of view. It can be utilized in education, industry, R&D, science, and a wide variety of other applications that require clear and precise magnification.
The XSZ single zoom tube is the latest design in high quality optical equipment. It may be used in any of our stands and fits on every arm. Designed as a modular system, with all metal construction. A number of auxiliary lenses and photo eyepieces may also be used to suit nearly every application. The XSZ combines user friendliness with versatility, and provides the user with ease of handling to gain optimum results.

A variety of Stands and Illuminations are available, the Photo Eyepiece outside diameter 33mm, we provide a Donut to hold the Photo Eyepiece and the scope body, this allows it to be put on a Stand with 83mm ring holder likes Universal Arm or Focusing Mount. When a Ring Light is used, a Ring Adapter is fixed on a scope body for holding the Ring Light.

#1411

Main Body (#1411)
Zoom range: .7x-4.5x
Total optical magnification range: 0.735x-18x.
Working Distance: 108mm (Main Body)

Photo Eyepiece
#2431   0.35X
#2432   0.5X
#2433   0.75X
#2434   1X
#2435   1.5X
#2436   2X
The 0.35X Photo Eyepiece designed for use a 1/3 inch CCD camera, for other Photo Eyepiece can be used any 1/3 or ?inch CCD camera.

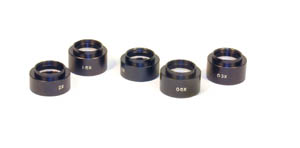

Auxiliary Lens

#2231   0.3X
#2232   0.5X
#2233   0.75X
#2234   1.5X
#2235   2X

# 4222

Donut (# 4222): ID33mm, OD83mm
  Ring Adapter (# 2331): ID34mm, OD49.5mm

Click here to view XSZ SET UP
Important, this Single Zoom needs to fit C-Mount CCD Camera/CS-Mount CCD Camera with C-Mount Adapter (5mm Spacer) for your CCD camera.

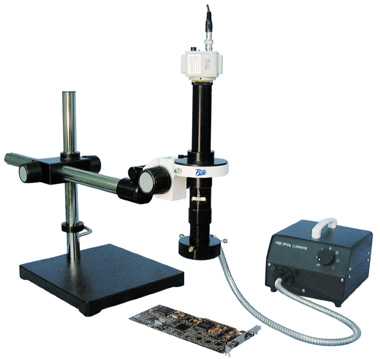

XSZ Whole Set Up:

Single zoom Body
0.35x Photo eyepiece
0.5x Auxiliary Lens
Donut


XSZ-SB2U Single Zoom Body with Boom Stand and U-Arm
Single zoom Body
0.35x Photo eyepiece
Donut
Boom Stand with Universal Arm.
Fiber Optics Illuminator: 21V/150W Halogen Bulb.
Fiber Optic Ring Light
Ring Adapter
1/3'' Digital CCD Camera with C-Mount Adapter
S-Video Cable & Power Supply
Monitor

Optical Magnification (from microscope)

Photo Eyepiece

0.3x

0.5x

0.75x

1x

1.5x

2x

Working Distance

Auxiliary Lens

0.3x

0.07-0.47

0.11-0.68

0.16-1.01

0.21-1.35

0.32-2.03

0.42-2.70

314mm

0.5x

0.12-0.79

0.18-1.13

0.26-1.69

0.35-2.25

0.53-3.38

0.70-4.50

189mm

0.75x

0.18-1.18

0.26-1.69

0.39-2.53

0.53-3.38

0.79-5.06

1.05-6.75

122mm

1x

0.25-1.58

0.35-2.25

0.53-3.38

0.70-4.50

1.05-6.75

1.40-9.00

108mm

1.5x

0.37-2.36

0.53-3.38

0.79-5.06

1.05-6.75

1.58-10.13

2.10-13.50

40mm

2x

0.49-3.15

0.70-4.50

1.05-6.75

1.40-9.00

2.10-13.50

2.80-18.00

38mm
