XTL Series Stereo Zoom Microscope Head

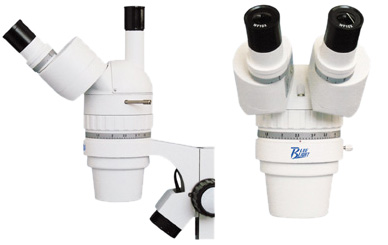

                 #1112+#2120                          #1111+#2120

XTL: Binocular (# 1111) with WF10X Eyepiece (# 2120)
XTLT: Trinocular (#1112) with WF10X Eyepiece (# 2120)
Zoom Range: 0.7x-4x
Zoom Ratio: 1:5.7
Total Magnification: 7-40X standard, 2.1-200X with optional lens
Working Distance: 88mm (without Auxiliary Lens), it can be 33-263mm with Optional Auxiliary Lens.
Field of View: 1.1-124mm (depending on eyepiece and auxiliary lens used)
Interpupillary Distance: adjustable 55-75mm
Binocular Tube: inclined 45 degree.
Diopter Adjustment: 5 Diopters
Binocular Body: Can be rotated a full 360 degree.
Trinocular Body: All of the features of XTS Binocular and provides a vertical phototube for CCD Video and Micro-Photographic system.

XTL series Stereo Zoom Microscope with a center zoom control system, it delivers large field of view and big depth of field, long working distance. Designed as a modular system, with all metal construction, and suited for various working conditions, a wide variety of optical lenses and stands are available.

OPTICAL SPECIFICATIONS

Auxiliary Lens

Eyepiece

Magnification

Field Of View

Working Distance

0.3x

WF5x (24mm)

1.05-6x

114.3-20mm

263mm

WF10x(22mm)

2.1-12x

105-18.3mm

WF10x(19mm)

2.1-12x

90.5-15.8mm

WF15x(16mm)

3.2-18x

76.2-13.3mm

WF20x(11.5mm)

4.2-24.x

55-9.6mm

WF25x(9mm)

5.3-30x

43-7.5mm

0.5x

WF5x (24mm)

1.75-10x

68.6-12mm

165mm

WF10x(22mm)

3.5-20x

63-11mm

WF10x(19mm)

3.5-20x

54.3-9.5mm

WF15x(16mm)

5.3-30x

45.7-8mm

WF20x(11.5mm)

7-40x

33-5.8mm

WF25x(9mm)

8.8-50x

26-4.5mm

0.75x

WF5x (24mm)

2.63-15x

45.7-8mm

107mm

WF10x(22mm)

5.3-30x

41.9-7.3mm

WF10x(19mm)

5.3-30x

36.2-6.3mm

WF15x(16mm)

7.9-45x

30.5-5mm

WF20x(11.5mm)

10.5-60x

22-3.8mm

WF25x(9mm)

13.1-75x

17.2-3mm

1x(fixed)

WF5x (24mm)

3.5-20x

34.3-6mm

88mm

WF10x(22mm)

7-40x

31.4-5.5mm

WF10x(19mm)

7-40x

27.1-4.8mm

WF15x(16mm)

10.5-60x

22.9-4mm

WF20x(11.5mm)

14-80x

16.4-3mm

WF25x(9mm)

17.5-100x

13-2.3mm

1.5x

WF5x (24mm)

5.25-30x

22.9-4mm

51mm

WF10x(22mm)

10.5-60x

21-3.7mm

WF10x(19mm)

10.5-60x

18.1-3.2mm

WF15x(16mm)

15.8-90x

15.2-2.7mm

WF20x(11.5mm)

21-120x

11.-1.9mm

WF25x(9mm)

26.3-150x

8.6-1.5mm

2x

WF5x (24mm)

7-40x

17.1-3mm

33mm

WF10x(22mm)

14-80x

15.7-2.8mm

WF10x(19mm)

14-80x

13.6-2.4mm

WF15x(16mm)

21-120x

11.4-2mm

WF20x(11.5mm)

28-160x

8.2-1.4mm

WF25x(9mm)

35-200x

6.5-1.1mm
